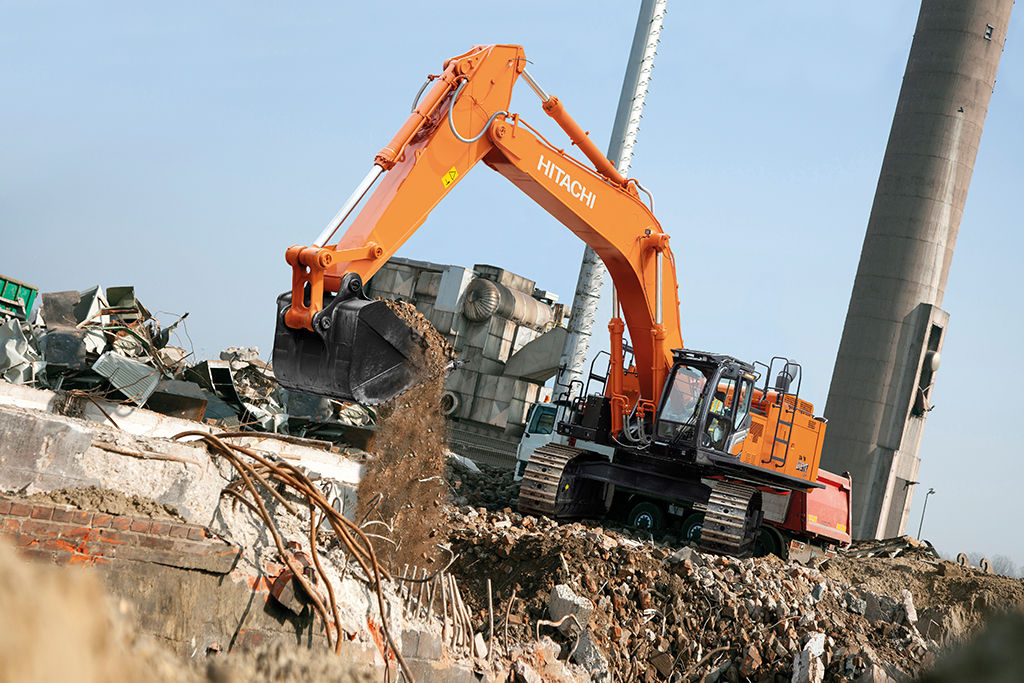

ZX690LCH-7 / ZX690LCR-7

The exceptional reliability and efficiency of the ZX690-7 large excavator will increase the productivity and profitability of your mining or quarrying operation. Its redesigned, state-of-the-art cab is the perfect working environment for the most remote locations.



Engine Rated Power (kW): 348 kW (ISO14396)
Operating weight (kg): 69 400 - 71 400 kg
Backhoe Bucket ISO Heaped: 2.9 - 4.0 m3
Available in: Europe

The exceptional reliability and efficiency of the ZX690-7 large excavator will increase the productivity and profitability of your mining or quarrying operation. Its redesigned, state-of-the-art cab is the perfect working environment for the most remote locations.



Quotation Request
Find A Dealer
Compare Model
Overview
About the ZX690-7

The durable ZX690LCH-7 large excavator has been built to perform reliably, all day and every day, often in remote and challenging conditions. It has been tested rigorously and continuously with the goal of significantly boosting uptime in busy mines and quarries. The ZX690LCR-7 model is built with reinforced parts that are ideal for digging and loading of heavy materials.

Benefits
Discover the benefits
  • Up to 22% reduced fuel consumption compared to previous models.
  • Enhanced efficiency due to Hitachi’s industry-leading hydraulic system, HIOS V.
  • Higher productivity thanks to improved front speed and increased engine output.
  • Improved comfort in the cab with integrated console and seat suspension, reduced noise and low vibration levels.
Download Brochure
Specifications

Specifications for the ZX690-7 Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model Isuzu 6WG1
Engine emissions EU Stage V
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment DOC + CSF and SCR system
No. of cylinders 6
Piston displacement 15.681 L
Rated power ISO 14396 348 kW at 1 800 min-1
Maximum torque 2 050 Nm at 1 300 min-1
Main pumps 2 variable displacement axial piston pumps
Maximum oil flow 2 x 489 L/min
Pilot pump 1 gear pump
Maximum oil flow pilot pump 50 L/min
  • Bucket and arm digging force
Bucket digging force ISO 324 / 369 kN
Arm crowd force ISO 255 / 306 kN
  • Operating weight and ground pressure
Shoe type double grouser
Shoe width 650 / 900 mm
Operating weight 69 400 - 71 400 kg
Ground pressure 77 - 106 kPA
  • Working ranges
Arm length 2.9 - 3.6 m
Max. digging reach 11 800 - 13 280 mm
Max. digging depth 7 120 - 8 560 mm
Max. dumping height 7 330 - 8 020 mm
  • Dimensions
Undercarriage length 5 840 mm
Undercarriage width (extended) 3 950 / 4 050 / 4 200 mm
Undercarriage width (retracted) 3 480 / 3 580 / 3 730 mm
Overall width of upper structure 4 090 mm
Overall height of cab 3 660 mm
Overall width 4 360 mm
  • Specifications
Engine Rated Power (kW) 348 kW (ISO14396)
Operating weight (kg) 69 400 - 71 400 kg
Backhoe Bucket ISO Heaped 2.9 - 4.0 m3
Max. digging depth (mm) 7 120 - 8 560 mm
Bucket digging force (kN) ISO 324 / 369 kN
Download Brochure
Attachments
Attachments enhance the performance of your ZX690-7
  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.
Download Brochure

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.

Find out more about Hitachi Premium Rental

Want to find out more?

For more information on the new Hitachi machinery, the Hitachi Premium Rental programme, or to discuss your needs in more detail, please fill out the form.



One of our specialists will contact you within a couple of days of your enquiry.
