ZX135USL-7 Forestry

Hitachi understands the unique demands the forestry industry places on its construction equipment. In response to this, it has developed a Zaxis-7 series excavator, the ZX135USL-7.

Engine Rated Power (kW): 74 kW (ISO14396)
Operating weight (kg): 15 900 - 16 900 kg
Max. digging reach (mm): 8 020 / 8 390 / 8 860 mm
Available in: Europe

Hitachi understands the unique demands the forestry industry places on its construction equipment. In response to this, it has developed a Zaxis-7 series excavator, the ZX135USL-7.

Quotation Request
Find A Dealer
Compare Model
Overview
About the ZX135USL-7 Forestry

With a durable undercarriage, it provides exceptional stability, higher ground clearance, smooth travelling performance over uneven terrain. The new ZX135USL-7 achieves a high level of performance in reliability, efficiency and productivity, enabling you to reduce running costs, along with an industry leading cab with first-class comfort and safety features.

The Hitachi ZX135USL-7 forestry excavator is ideal for a variety of applications such as logging, log felling, loading and digging. Thanks to its robust design, it offers enhanced durability, stability and safety for challenging working conditions.

Benefiits
Discover the benefits
  • Up to 10% reduced fuel consumption compared to previous models.
  • Enhanced efficiency due to Hitachi’s industry-leading hydraulic system, TRIAS III.
  • Improved comfort in the cab with integrated console and seat suspension, lowest noise levels in the market and 20% less vibration than previous models.

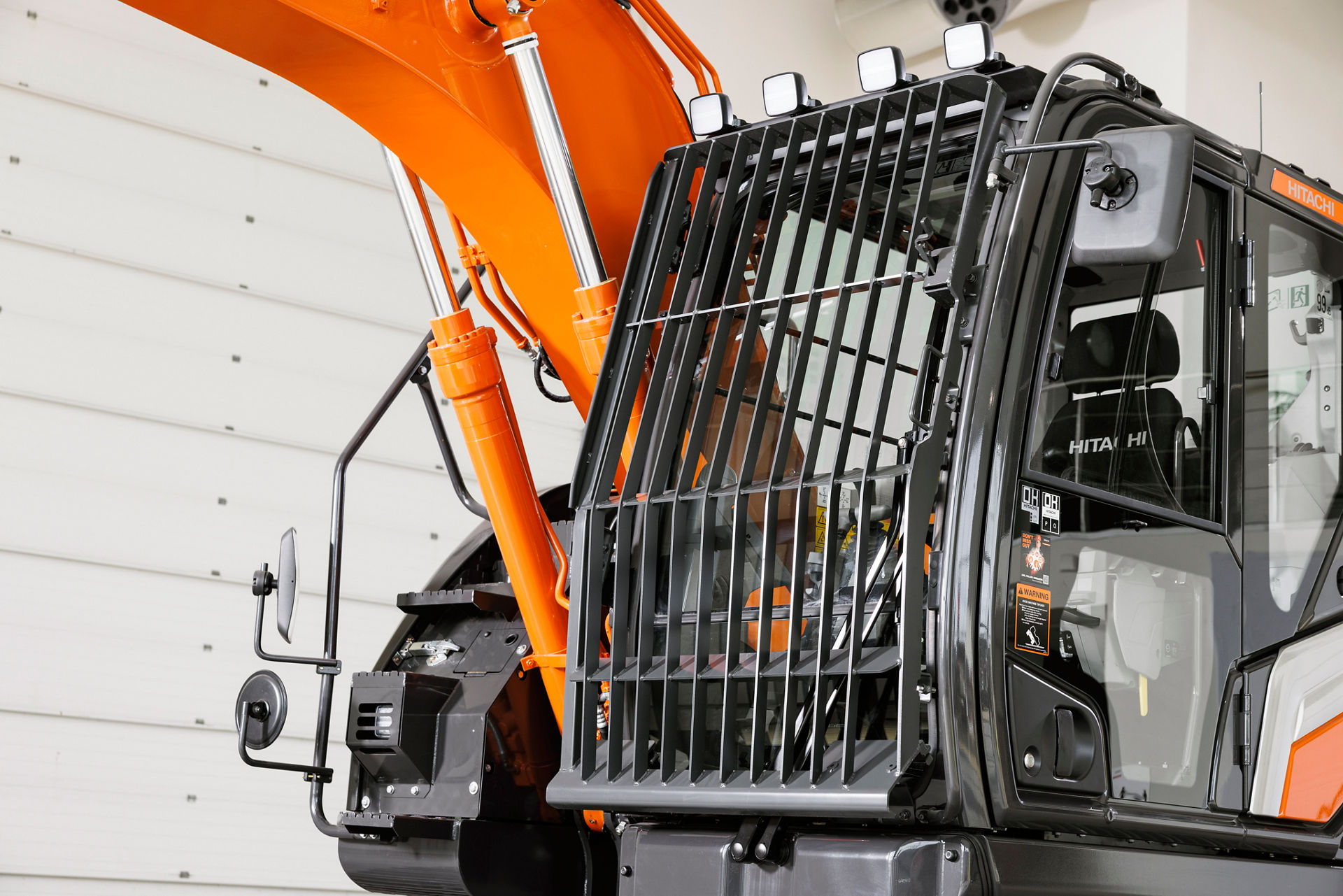

  • Increased safety thanks to superior visibility and 270-degree bird’s-eye view from the cab.
Download Brochure
Specifications

Specifications for the ZX-7 super long front excavators

Expand all Collapse all
  • Engine & hydraulic system
Engine Model TOYOTA INDUSTRIES CORPORATION 1KDE
Engine emissions EU Stage V
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Turbocharged, intercooled, cooled EGR
Aftertreatment DOC and CSF system
No. of cylinders 4
Piston displacement 2.982 L
Pilot pump 1 gear pump
Maxium oil flow pilot pump 33.6 L/min
  • Weights and ground pressure
Shoe grouser type triple
Shoe width 500 / 800 mm
Operating weight 15 900 - 16 900 kg
Ground pressure 31 - 51 kPa
  • Working ranges
Arm length 2.10 / 2.52 / 3.01 m
Max. digging reach 8 020 / 8 390 / 8 860 mm
Max. digging depth 4 850 / 5 270 / 5 760 mm
Max. dumping height 9 240 / 9 510 / 9 910 mm
  • Dimensions
Undercarriage length 3 790 mm
Overall width of upperstructure 2 480 mm
Overall height of cab 3 030 mm
  • Top Features
Engine Rated Power (kW) 74 kW (ISO14396)
Operating weight (kg) 15 900 - 16 900 kg
Max. digging reach (mm) 8 020 / 8 390 / 8 860 mm
Download Brochure
Attachments
Attachments enhance the performance of your ZX-7 excavator
  • Durable hydraulic breakers, buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application. Quick coupler connections are also available.
  • Hitachi-approved breakers are easy to maintain, user-friendly, and high-quality materials ensure a long lifetime.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.
Download Brochure
