ZX135W-7

The ZX135W-7 wheeled excavator enables you to increase your profits and reduce running costs thanks to the impressive fuel economy of this Stage-V compliant machine. You can also count on the highest quality and the ultimate in operating comfort.

Engine Rated Power (kW): 105 (ISO 14396)/100 (ISO 9249)
Operating weight (kg): 14 500 - 15 900 kg
Backhoe Bucket ISO Heaped: 0.19 - 0.66 m3
Available in: Europe

The ZX135W-7 wheeled excavator enables you to increase your profits and reduce running costs thanks to the impressive fuel economy of this Stage-V compliant machine. You can also count on the highest quality and the ultimate in operating comfort.

Quotation Request
Find A Dealer
Compare Model
Overview
About the ZX135W-7

Thanks to the excellent versatility of the newly developed ZX135W-7, you can work on a wider range of projects and fine-tune the machine for optimum productivity. As the newly developed ZX135W-7 is based on the larger ZX155W-7, it is equipped with the same engine and delivers an unrmmivalled performance when space is at a premium.

Benefits
Discover the benefits
  • HIOS V hydraulic system increases efficiency and front speed, and reduces fuel consumption.
  • All-new ECO gauge allows operators to control fuel efficiency and reduce costs.
  • Attachment support system enables increased versatility.
  • Industry-leading cab offers the ultimate in comfort and quality.
Download Brochure
Specifications

Specifications for the ZX135W-7 Wheeled Excavator

Expand all Collapse all
  • Engine & hydraulic system
Engine Model DEUTZ TCD4.1L4
Engine Type 4-cycle water-cooled, common rail direct injection
Aspiration Turbocharged with waste gate, intercooled, cooled EGR
After-treatment DOC+DPF+SCR system
No. of cylinders 4
Rated power ISO 14396 105 kW at 2 000 min-1
Maximum torque 550 Nm at 1 600 min-1
Main pumps 2 variable displacement axial piston pumps
Maximum oil flow main pump 2 x 117 L/min
Pilot pump 1 gear pump
Maximum oil flow pilot pump 23.4 L/min
  • Bucket and arm digging force
Bucket digging force ISO 94kn
Arm crowd force ISO 66kn
  • Working ranges
Arm length 1.96 - 2.26 m
Max. digging reach 8 140 - 8 460 mm
Max. digging depth 4 580 - 4 900 mm
Max. dumping height 6 930 - 7 240 mm
  • Dimensions
Overall width of upperstructure 2 480mm
Overall height of cab 3 150mm
Overall width of tires 2 490mm
Overall width 2 470 - 3 380 mm
  • Specifications
Engine Rated Power (kW) 105 (ISO 14396)/100 (ISO 9249)
Operating weight (kg) 14 500 - 15 900 kg
Backhoe Bucket ISO Heaped 0.19 - 0.66 m3
Max. digging depth (mm) 4 580 - 4 900 mm
Bucket digging force (kN) ISO 94kn
Download Brochure

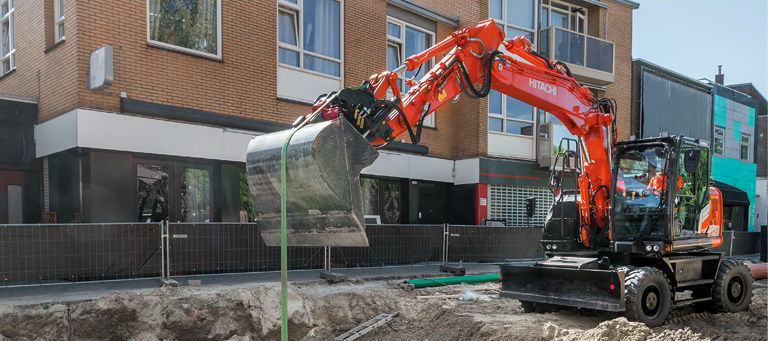

Attachments
Attachments enhance the performance of your ZX135W-7
  • Durable buckets and ground engaging tools will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi attachments to suit the application.
  • Hitachi ground engaging tools (GET) fit precisely to your attachments, and are quick and safe to install and replace.
Download Brochure

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.

FIND OUT MORE ABOUT HITACHI PREMIUM RENTAL

Want to find out more?

For more information on the new Hitachi machinery, the Hitachi Premium Rental programme, or to discuss your needs in more detail, please fill out the form.



One of our specialists will contact you within a couple of days of your enquiry.
