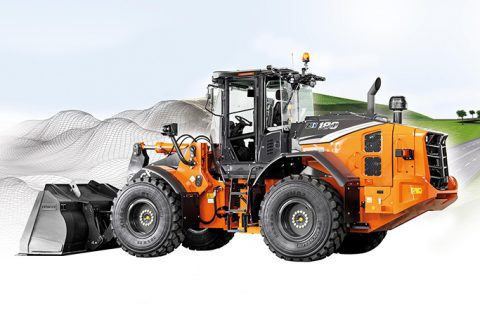

ZW180-7

Benefitting from many years of extensive research by Hitachi, the ZW180-7 is designed to meet the needs of operators and owners perfectly, enabling them to control their safety, comfort and uptime. Its industry-leading cab offers superior visibility so work can be carried out confidently, productively and efficiently in challenging conditions.

Engine Rated Power (kW): 129kW (173 hp) (ISO2007 net)
Operating weight (kg): 14 950 - 15 170 kg
Backhoe Bucket ISO Heaped: 2.5 - 5.2 m3
Available in: Europe

Benefitting from many years of extensive research by Hitachi, the ZW180-7 is designed to meet the needs of operators and owners perfectly, enabling them to control their safety, comfort and uptime. Its industry-leading cab offers superior visibility so work can be carried out confidently, productively and efficiently in challenging conditions.

Quotation Request
Find A Dealer
Compare Model
Overview
About the ZW180-7

The ZW180-7 is the safest wheel loader in the market thanks to the superb visibility from the cab and intelligent safety-enhancing features including the Aerial Angle camera, and rear obstacle detection and warning systems. It also offers exceptional versatility and can be used on a wide range of applications with three types of lift arms – standard, high and parallel.

Benefits
Discover the benefits

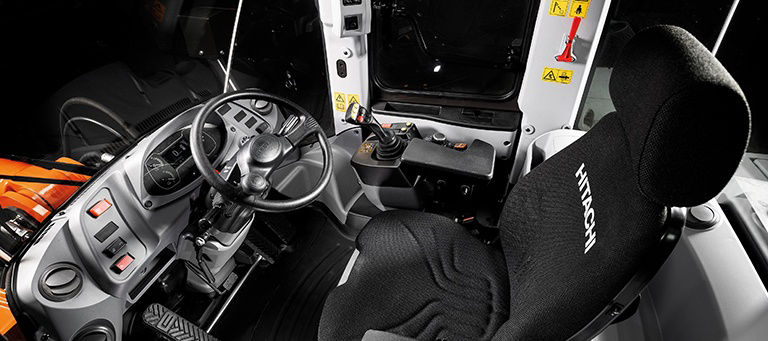

  • A perfect workspace in the state-of-the-art cab with integrated console and seat suspension, reduced noise and low vibration levels.
  • Unrivalled safety and superb all-round visibility due to 270-degree bird’s-eye view, curved engine hood and intelligent systems.
  • Impressive fuel economy and exceptional efficiency.
  • Increased uptime thanks to durable components, intelligent prevention systems and easy maintenance features.
Download Brochure
Specifications

Specifications for the ZW180-7

Expand all Collapse all
  • Engine
Engine Model CUMMINS B6.7
Engine Type 4-Cycle water-cooled, direct injection
Aspiration Turbocharger and intercooled
No. of cylinders 6
Maximum power ISO 14396 129 kW / 173 hp
Maximum torque, gross 1 104 Nm at 1 100 min-1 (rpm)
Bore and stroke 107 mm X 124 mm
Piston displacement 6.69 L
Batteries 2 x 12 V
  • Tires
Tire size 20.5R25 (L3)
Optional Refer to standard & optional equipment list
  • Brakes
Service brakes Inboard mounted fully hydraulic 4 wheel wet disc brakes. Front & rear independent brake circuit.
Parking brakes Spring applied, hydraulically released, dry disc type with external output shaft.
  • Steering system
Type Articulated frame steering
Steering angle Each direction 40o ; total 80°
Cylinders Double-acting piston type
No. x Bore x Stroke 2 x 70 mm x 442mm
No. x Bore x Stroke Arm : 2 x 125 mm x 765 mm Bucket : 1 x 110 mm x 995 mm
  • Hydraulic system
Main pump Variable Displacement Axial Plunger Pump
Maximum flow 224 L/min at 2 200 min-1 (rpm)
Hydraulic cylinders Type Double acting type
  • Power train
Transmission Torque converter, countershaft type powershift with the computer-controlled automatic shift and manual shift features included.
Torque converter Three elements, single stage, single phase
Travel speed* Forward Reverse 1st 5.9 / 6.2 km/h (6.3 . 6.6 km/h)
Travel speed* Forward Reverse 2nd 11.5 / 12.1 km/h (12.2 / 12.9 km/h)
Travel speed* Forward Reverse 3rd 17.5 / 26.5 km/h (18.5 /28.3 km/h)
Travel speed* Forward Reverse 4th 25.3 km/h (27 km/h)
Travel speed* Forward Reverse 5th 39 km/h (39 km/h)
  • Axle and final drive
Drive system Four-wheel drive system
Oscillation angle Total 20° (+10° ,-10°)
  • Environment
Engine Emissions EU Stage V
Sound level in cab according to ISO 6396 67 LpA dB(A)
External sound level according to ISO 6395 and EU Directive 2000 14 EC 104 LwA dB(A)
Air Conditioning System The air conditioning system contains fluorinated greenhouse gases. Refrigerant type: HFC-134a, GWP: 1430, Amount: 0.75±0.05kg, CO2e: 1.07±0.07ton.
  • Service refill capacities
Fuel tank 230 L
Engine coolant 25 L
Engine oil 25 L
Torque converter & transmission 30 L
Front axle differential & wheel hubs 31 L
Rear axle differential & wheel hubs 34 L
Hydraulic oil tank 100 L
DEF AdBlue® tank 25 L
  • Dimensions and specifications
Overall length (without bucket) (mm) 6 725 mm (standard arm) 7 225 mm (High-lift arm)
Overall height up to cab top (mm) 3 310 mm
Ground clearance (minimum) (mm) 400 mm
Turning radius (centerline of outside tire) (mm) 5 235 mm
Turning radius to inside of tires (mm) 2 995
Height to bucket hinge pin, fully raised (mm) 3 925
Lift arm clearance at max lift (mm) 3 670 mm (standard arm) 4 055 mm ( High-lift arm)
Static tipping load (Straight) (kg) 12 570 kg (Standard arm) 9 780 kg (High-lift arm)
Breakout force (kN) 128 kN 13 010 kgf (Standard arm) 103 kN 10 470 kgf (High-lift arm)
Operating weight (kg) 14 950 kg (standard arm) 15 270 kg (High-lift arm)
  • Top Features
Engine Rated Power (kW) 129kW (173 hp) (ISO2007 net)
Operating weight (kg) 14 950 - 15 170 kg
  • Specifications
Backhoe Bucket ISO Heaped 2.5 - 5.2 m3
Download Brochure

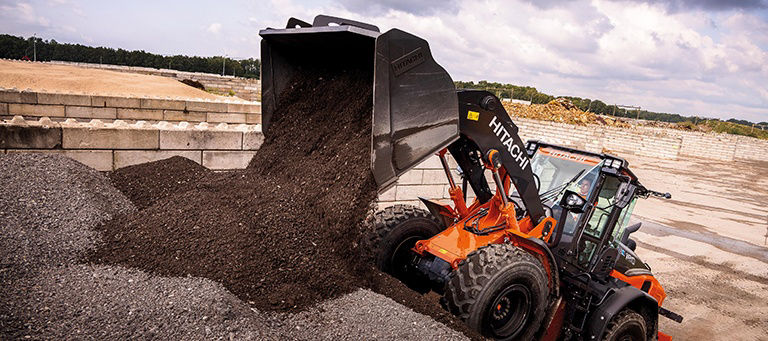

Attachments
Buckets enhance the performance of your ZW180-7
  • High-quality buckets and robust ground engaging tools (GET) will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application, with quick coupler connections also available.
  • Hitachi GET fit precisely to your attachments and are quick and safe to install and replace.
Download Brochure

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.

Find out more about Hitachi Premium Rental

Want to find out more?

For more information on the new Hitachi machinery, the Hitachi Premium Rental programme, or to discuss your needs in more detail, please fill out the form.



One of our specialists will contact you within a couple of days of your enquiry.
