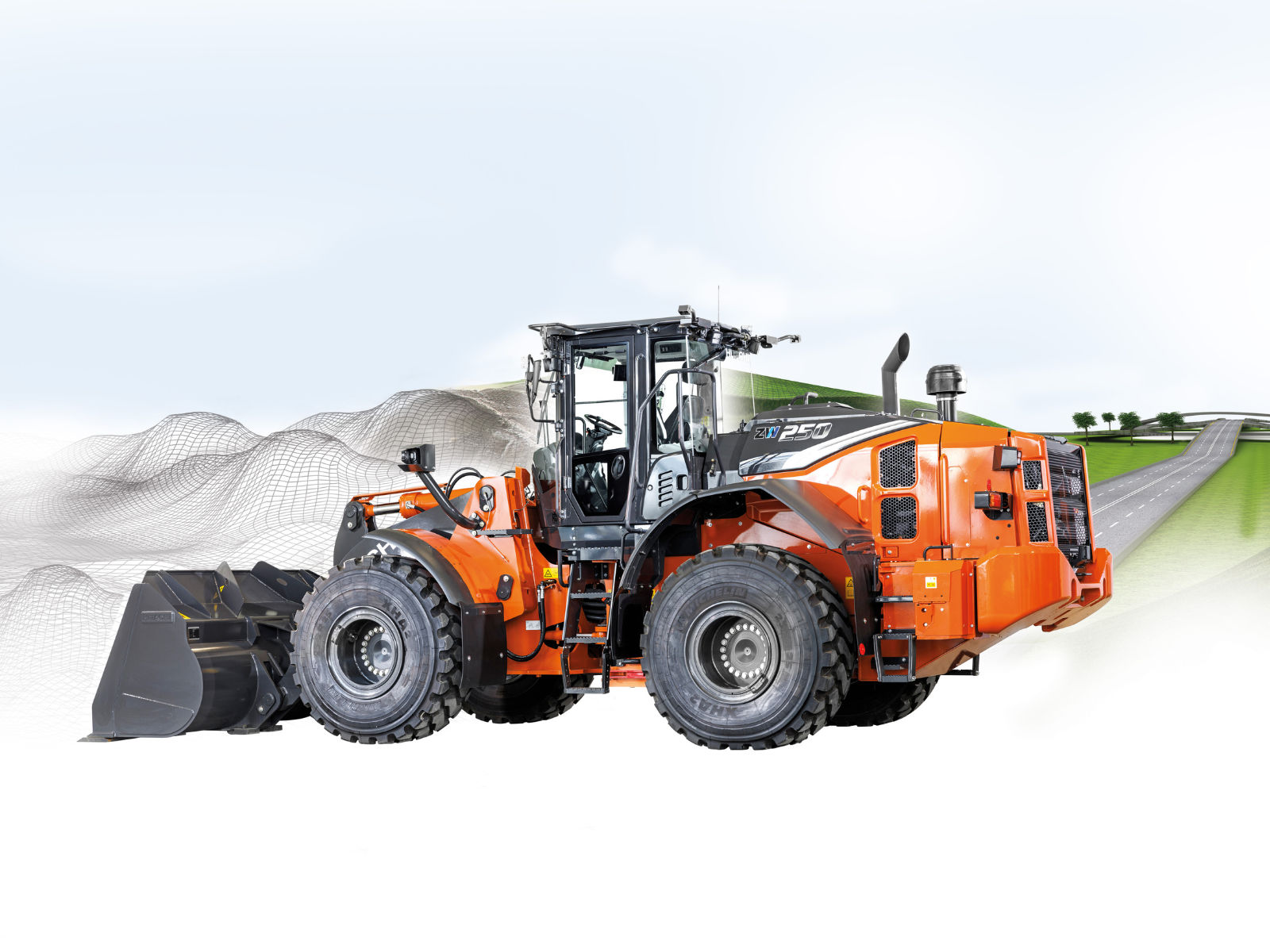

ZW220-7_walkaround_1600x1200 || true
ZW220-7_front_1600x1200 || true

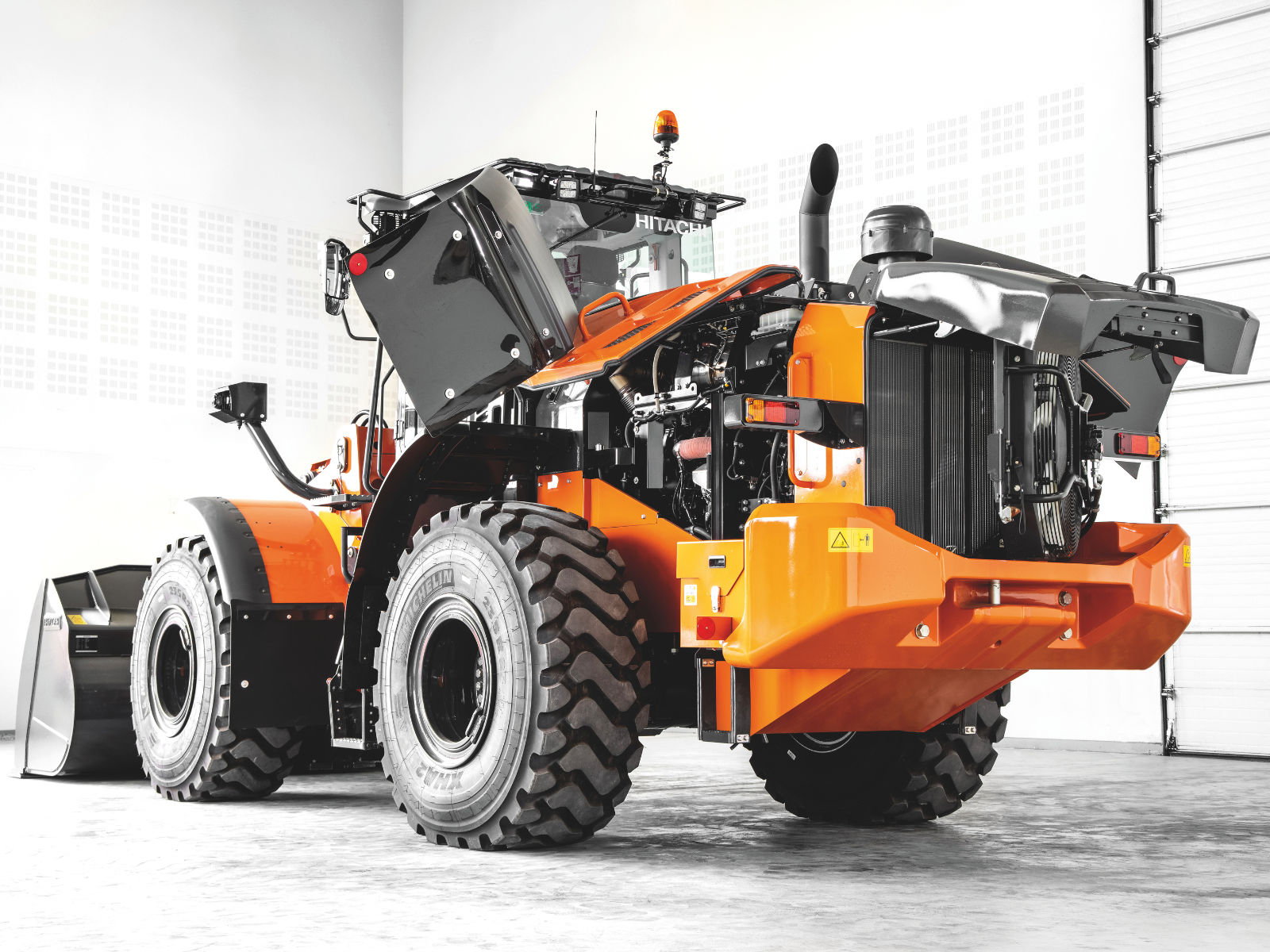

ZW220-7_rear_1600x1200 || true
ZW220-7_walkaround_1600x1200 || true
ZW220-7_front_1600x1200 || true
ZW220-7_rear_1600x1200 || true

ZW220-7

The ZW220-7 wheel loader offers exceptional safety, comfort and uptime, enabling you to work more confidently, productively and efficiently in challenging conditions. Designed after many years of extensive research by Hitachi, it meets the needs of operators and owners perfectly with an industry-leading cab and superior visibility.

Engine Rated Power (kW): 149 kW (ISO14396)
Operating weight (kg): 18 190 - 19 450 kg
Bucket capacity (m³) ISO Heaped: 2.8 - 10.0 m3
Available in: Europe

The ZW220-7 wheel loader offers exceptional safety, comfort and uptime, enabling you to work more confidently, productively and efficiently in challenging conditions. Designed after many years of extensive research by Hitachi, it meets the needs of operators and owners perfectly with an industry-leading cab and superior visibility.

Quotation Request
Find A Dealer
Compare Model
Overview
About the ZW220-7

You can count on the ultimate in comfort, safety and quality with the new ZW220-7 wheel loader. The state-of-the-art cab has been fully redesigned to provide you with the perfect workspace, and the superb visibility and intelligent safety-enhancing systems ensure it is the safest wheel loader in the market.

Benefits
Discover the benefits

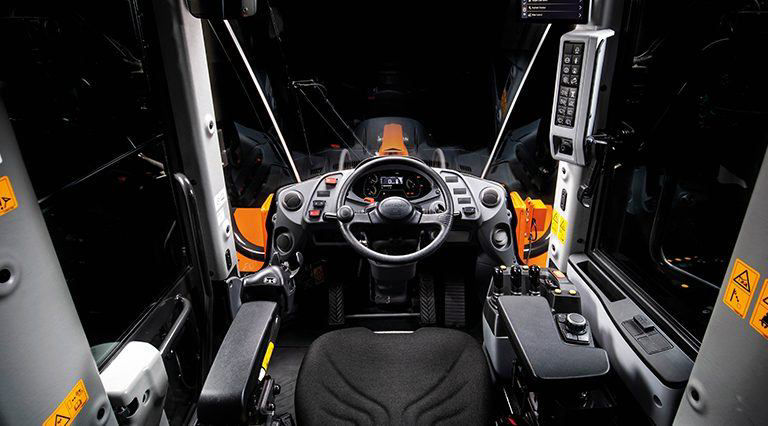

  • Improved comfort in the redesigned cab with integrated console and seat suspension, reduced noise and low vibration levels.
  • Unrivalled safety and superb all-round visibility due to 270-degree bird’s-eye view, curved engine hood and intelligent systems.
  • Impressive fuel economy and exceptional efficiency.
  • Increased uptime thanks to durable components, intelligent prevention systems and easy maintenance features.
Download Brochure
Specifications

Specifications for the ZW220-7

Expand all Collapse all
  • Engine
Engine Model CUMMINS B6.7
Engine Type 4 cycle water-cooled, direct injection
Aspiration Turbocharger and intercooled
No. of cylinders 6
Maximum power ISO 14396 157 kW (210 hp) at 1 900 (rpm)
Maximum torque, gross 990 Nm at 1 300 (rpm)
Bore and stroke 107 mm X 124 mm
Piston displacement 6.69L
Batteries 2 X 12 V
  • Tires
Tire size 23.5R25 (L3)
Optional Refer to standard and optional equipment list
  • Brakes
Service brakes Inboard mounted fully hydraulic 4 wheel wet disc brake. Front & rear independent brake circuit
Parking brakes Spring applied, hydraulically released, dry disc type with external output shaft
  • Steering system
Type Articulated frame steering
Steering angle Each direction 37°; total 74°
Cylinders Double-acting piston type
No. x Bore x Stroke 2 x 70 mm x 442 mm
  • Hydraulic system
Main pump Variable Displacement Axial Plunger Pump
Maximum flow 275 L/min at 2 200 (rpm)
Hydraulic cylinders Type Double acting type
No. x Bore x Stroke Arm: 2 x 130 mm x 880 mm / Bucket: 1 x 165 mm x 510 mm
  • Power train
Transmission Torque convertershaft type powershift with computer-controlled automatic shift and manual shift features included.
Torque converter Three element, single stage, single phase
Travel speed* Forward Reverse 1st 6.3 / 6.6 km/h (6.3 / 6.7 km/h)
Travel speed* Forward Reverse 2nd 10.9 / 11.4 km/h (11.4 / 12.0 km/h)
Travel speed* Forward Reverse 3rd 16.0 / 24.8 km/h (17.3 / 26.9 km/h)
Travel speed* Forward Reverse 4th 23.7 km/h (25.7 km/h)
Travel speed* Forward Reverse 5th 36.3 km/h (36.3 km/h)
  • Axle and final drive
Drive system Four-wheel drive system
Oscillation angle Total 24˚ (+12˚,-12˚)
  • Environment
Engine Emissions EU Stage V
Sound level in cab according to ISO 6396 LpA 68 dB(A)
External sound level according to ISO 6395 and EU Directive 2000 14 EC LwA 105 dB(A)
Air Conditioning System The air conditioning system contains fluorinated greenhouse gases. Refrigerant type: HFC-134a, GWP: 1430, Amount: 0.80±0.05kg, CO2e: 1.14±0.07ton.
  • Service refill capacities
Fuel tank 255 L
Engine coolant 29 L
Engine oil 25 L
Torque converter & transmission 27 L
Front axle differential & wheel hubs 32 L
Rear axle differential & wheel hubs 32 L
Hydraulic oil tank 114 L
DEF AdBlue® tank 25 L
  • Dimensions and specifications
Overall length (without bucket) (mm) 7 110 (standard arm) / 7 610 (high-lift arm)
Overall height up to cab top (mm) 3 370
Ground clearance (minimum) (mm) 450
Turning radius (centerline of outside tire) (mm) 6 010
Turning radius to inside of tires (mm) 3 530
Height to bucket hinge pin, fully raised (mm) 4 080 (standard arm) / 4 490 (high-lift arm)
Lift arm clearance at max lift (mm) 3 770 (standard arm) / 4 180 (high-lift arm)
Static tipping load (Straight) (kg) 15 230 - 11 780 kg
Breakout force (kN) 156 - 124 kN
Operating weight (kg) 18 190 - 18 610 kg
  • Top Features
Engine Rated Power (kW) 149 kW (ISO14396)
Operating weight (kg) 18 190 - 19 450 kg
Bucket capacity (m³) ISO Heaped 2.8 - 10.0 m3
Download Brochure
Attachments
Buckets enhance the performance of your ZW220-7
  • High-quality buckets and robust ground engaging tools (GET) will increase your profit by maximising productivity and uptime.
  • Choose from a wide range of Hitachi buckets to suit the application, with quick coupler connections also available.
  • Hitachi GET fit precisely to your attachments, and are quick and safe to install and replace.
Download Brochure

Try before you buy with Hitachi Premium Rental

You can rent a wide range of Hitachi excavators and wheel loaders direct from Hitachi via our dealer network. Hitachi Premium Rental machines can be hired by the month and for periods up to one year. This gives you the high levels of reliability, quality and service you would expect from Hitachi, and greater flexibility to meet the varying demands of your business.

Find out more about Hitachi Premium Rental

Want to find out more?

For more information on the new Hitachi machinery, the Hitachi Premium Rental programme, or to discuss your needs in more detail, please fill out the form.



One of our specialists will contact you within a couple of days of your enquiry.

Contact

By submitting this form, you agree to the Terms of use and Privacy policy.
Subscribe to the latest news from Hitachi Construction Machinery (Europe).
Michael Metzner Owner, Metzner Recycling
Most of our other buckets are flat on the bottom, but the Hitachi bucket has a round floor, which makes it easier to fill with material and results in less wheel spin. This is quicker, more fuel-efficient, and prevents tyre wear. The teeth also last twice as long as competitors.
