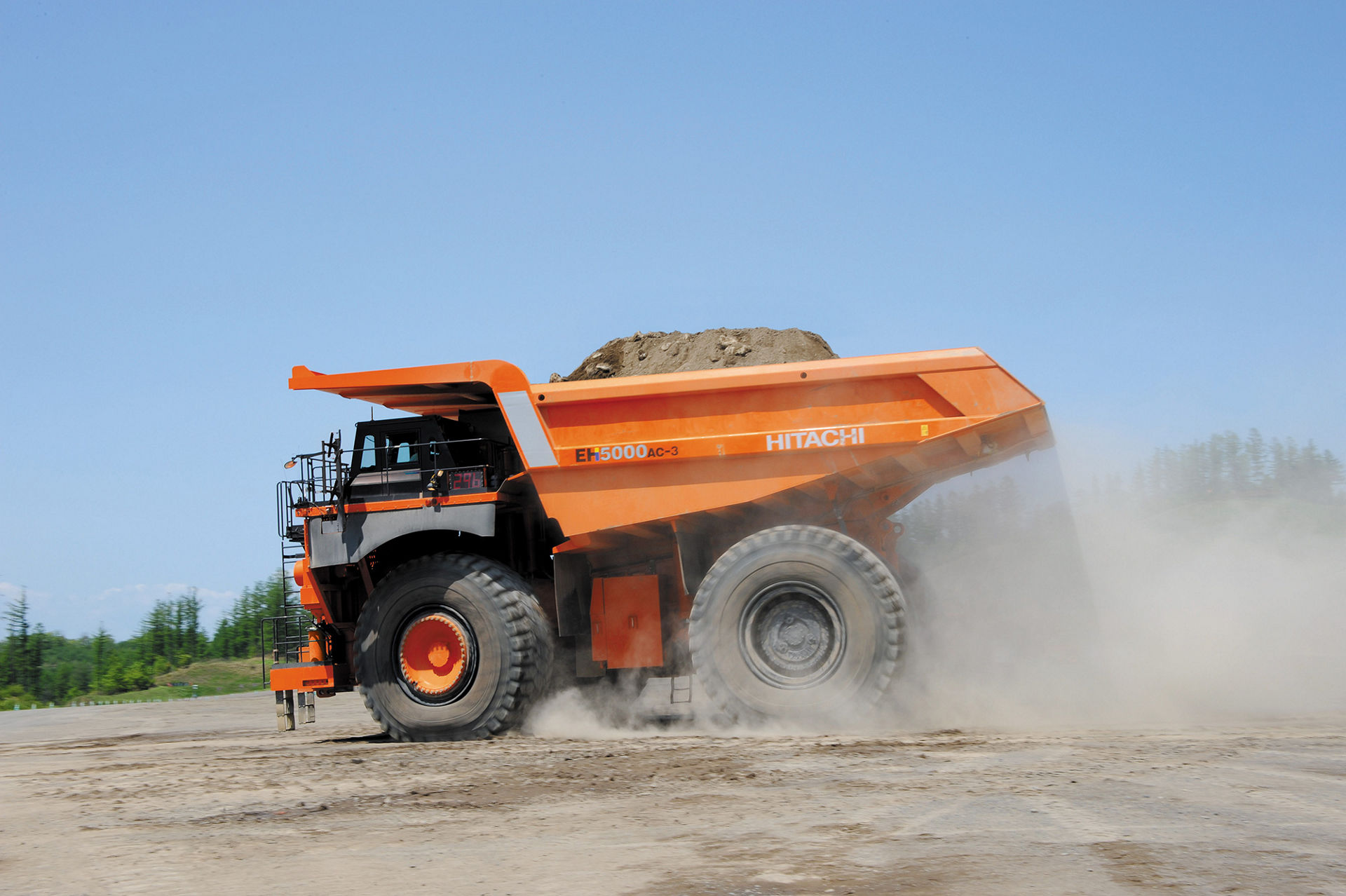

EH5000AC-3

Advanced technology



The EH5000AC-3 is our largest dump truck and one of the most technologically advanced of its kind. It features the Advanced Hitachi Construction Machinery AC Drive System, and is the only one available on the market where the drive system and the truck are designed and built by the same manufacturer.



We developed the AC Drive System using advanced propulsion technology, which also powers Japanese bullet trains. It ensures a superior performance, with higher top speeds and stronger electric braking. The AC wheel motors are designed to require less maintenance, provide higher availability and faster travel speeds. The result? Higher productivity and lower costs per tonne, and a quicker return on your investment.

Nominal payload (kg): with Standard Equipment : 296 tonnes (326 tons)
Gross machine operating weight (kg): 500 000 kg (1,102,311 lb.)
Engine Rated Power (kW): Standard : Cummins QSKTTA60-CE : 2 125 kW (2 889 PS, 2 850 HP) / Optional : MTU 16V4000 C31 :2 125 kW (2 889 PS, 2 850 HP)

Advanced technology



The EH5000AC-3 is our largest dump truck and one of the most technologically advanced of its kind. It features the Advanced Hitachi Construction Machinery AC Drive System, and is the only one available on the market where the drive system and the truck are designed and built by the same manufacturer.



We developed the AC Drive System using advanced propulsion technology, which also powers Japanese bullet trains. It ensures a superior performance, with higher top speeds and stronger electric braking. The AC wheel motors are designed to require less maintenance, provide higher availability and faster travel speeds. The result? Higher productivity and lower costs per tonne, and a quicker return on your investment.

Quotation Request
Find A Dealer
Compare Model
Overview
Easy operation

Inside the cab of the EH5000AC-3 you will find a large centrally mounted colour display for straightforward operation. It’s structurally sound thanks to the double-wall construction, and vibrations are kept to a minimum.



The superior suspension of the EH5000AC-3 ensures excellent manoeuvrability, even at high speeds, and the trailing arm layout also offers easy servicing. Direct access to the coolant, grease, hydraulic and engine oil is available at ground level.

Specifications

Specifications for the EH5000AC-3

Expand all Collapse all
  • Engine
Engine Model Cummins QSKTA60-CE (T2)
Engine Model (Optional) MTU 16V4000 C31 (Not Certified)
  • Tires
Tire size Rim Width : 53/80R63 (standard) 914 mm (36 in.)
: 53/80R63 (optional) 965 mm (38 in.)
  • Dimensions
Overall length 15 490 mm (50 ft. 10 in.)
Overall width 9 600 mm (31 ft. 6 in.)
  • Specifications
Nominal payload (kg) with Standard Equipment : 296 tonnes (326 tons)
Gross machine operating weight (kg) 500 000 kg (1,102,311 lb.)
Engine Rated Power (kW) Standard : Cummins QSKTTA60-CE : 2 125 kW (2 889 PS, 2 850 HP) / Optional : MTU 16V4000 C31 :2 125 kW (2 889 PS, 2 850 HP)
Download Brochure
